Home/PRODUCT/HYDRAULIC HOSE/FIBER REINFORCED RUBBER HOSE/SAE100R6 OIL HOSE

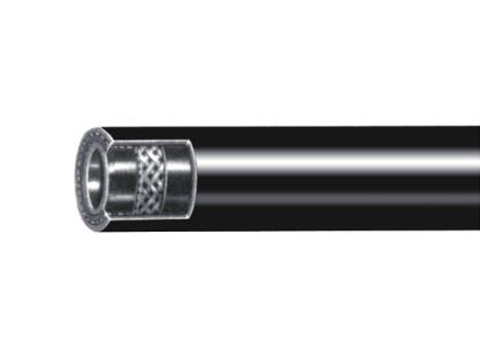

SAE100R6 OIL HOSE
SAE100R6 OIL HOSE

LT784SAE100R6 OIL HOSE

●
Tube：Black oil-resistant synthetic rubber
●
Reinforcement：A layer of woven fiber
●
Cover：Black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Get a free quote
Online message
24-hour hotline service：
13523078947
Details description Specifications Online message Related Products
●
Applications：Suitable for conveying petroleum-based hydraulic oil, lubricating oil, gasoline, fuel oil, water and air, etc.
●
Tube：Black oil-resistant synthetic rubber
●
Reinforcement：A layer of woven fiber
●
Cover：Black oil-resistant, weather-resistant, wear-resistant synthetic rubber
●
Temperature Range：-40℃ to +100℃ (-40℉ to +212℉)
SAE100R6 OIL HOSE
Specifications

  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    Max.W.P.

    Min.B.P.

    		 Min.B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)

    3

    3/16

    4.4

    5.2

    11.9

    3.4

    14

    50

    4

    1/4

    5.9

    6.9

    13.5

    2.8

    11.2

    65

    5

    5/16

    7.4

    8.4

    15.1

    2.8

    11.2

    80

    6

    3/8

    9.0

    10.0

    16.7

    2.8

    11.2

    80

    8

    1/2

    12.1

    13.3

    20.6

    2.8

    11.2

    100

    10

    5/8

    15.3

    16.5

    23.8

    2.4

    9.6

    125

    12

    3/4

    18.2

    19.8

    27.8

    2.1

    8.4

    150
