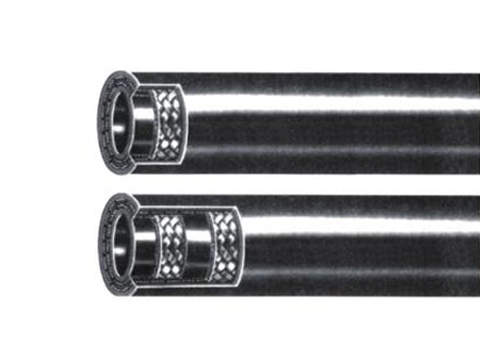

LT682SAE 100 RA/EN 853 ST Hydraulic Hose

Tube:black heat-resistant oil synthetic rubber
Reinforcement:one or two layers of super flexible high-strength steel wire
Cover:black oil-resistant, weather-resistant, wear-resistant synthetic rubber
24-hour hotline service:
Applications:suitable for conveying petroleum oil and water-based and biodegradable hydraulic oil, to meet industrial demands for General
Tube:black heat-resistant oil synthetic rubber
Reinforcement:one or two layers of super flexible high-strength steel wire
Cover:black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range:-40 ° C ~ + 135 ° C (-40 ° F ~ + 275 ° F)
SAE 100 RA/EN 853 ST Hydraulic Hose
Specifications
  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    Max.W.P.

    Min.B.P.

    Min.B.R.

    Min

    Max

    Min

    (MPa)

    (MPa)

    (mm)

    5

    3/16-1

    4.6

    5.4

    13.5

    25.0

    100.0

    90

    6

    1/4-1

    6.2

    6.9

    16.7

    22.5

    90.0

    100

    8

    5/16-1

    7.7

    8.5

    18.3

    21.5

    85.0

    115

    10

    3/8-1

    9.3

    10.1

    20.6

    18.0

    72.0

    130

    13

    1/2-1

    12.3

    13.5

    23.8

    16.0

    64.0

    180

    16

    5/8-1

    15.5

    16.7

    27.0

    13.0

    52.0

    200

    19

    3/4-1

    18.6

    19.8

    31.0

    10.5

    42.0

    240

    25

    1-1

    25.0

    26.4

    39.0

    8.8

    35.0

    300

    32

    1 1/4-1

    31.4

    33.0

    47.5

    6.3

    25.0

    420

    38

    1 1/2-1

    37.7

    39.3

    54.0

    5.0

    20.0

    500

    51

    2-1

    50.4

    52.0

    68.2

    4.0

    16.0

    630

    5

    3/16-2

    4.6

    5.4

    16.7

    41.5

    165.0

    90

    6

    1/4-2

    6.2

    6.9

    18.3

    40.0

    160.0

    100

    8

    5/16-2

    7.7

    8.5

    19.9

    35.0

    140.0

    115

    10

    3/8-2

    9.3

    10.1

    22.2

    33.0

    132.0

    130

    13

    1/2-2

    12.3

    13.5

    25.4

    27.5

    110.0

    180

    16

    5/8-2

    15.5

    16.7

    28.6

    25.0

    100.0

    200

    19

    3/4-2

    18.6

    19.8

    32.6

    21.5

    85.0

    240

    25

    1-2

    25.0

    26.4

    40.8

    16.5

    65.0

    300

    32

    1 1/4-2

    31.4

    33.0

    52.4

    12.5

    50.0

    420

    38

    1 1/2-2

    37.7

    39.3

    58.8

    9.0

    36.0

    500

    51

    2-2

    50.4

    52.0

    71.4

    8.0

    32.0

    630
