Home/PRODUCT/INDUSTRIAL HOSE/SUCTION DISCHARGE HOSE/GENERAL PURPOSE WATER SUCTION & DISCHARGE RUBBER HOSE

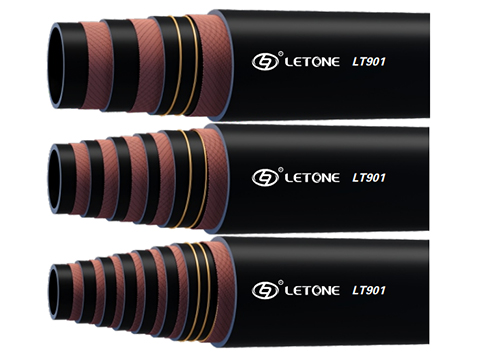

LT901GENERAL PURPOSE WATER SUCTION & DISCHARGE RUBBER HOSE

Inner Tube:black EPDM or NR&SBR synthetic rubber (UPE layer is available)
Reinforcement:multi-spiraled high tensile synthetic fibers and helical spiral-wire
Outer Layer::black EPDM or NR&SBR synthetic rubber
24-hour hotline service:
Application: Designed for the general use of construction, agriculture, and other industrial applications.
Inner Tube:black EPDM or NR&SBR synthetic rubber (UPE layer is available)
Reinforcement:multi-spiraled high tensile synthetic fibers and helical spiral-wire
Outer Layer::black EPDM or NR&SBR synthetic rubber
Working pressure:Constant pressure 10Bar (150PSI)
Temperature range:-30°C~100°C (-22°F~212°F)
GENERAL PURPOSE WATER SUCTION & DISCHARGE RUBBER HOSE
Specifications
  • I.D.

    (in.)

    I.D.

    (mm)

    O.D.

    (in.)

    O.D.

    (mm)

    MaxRec.W.P.

    (PSI)

    Min.B.P

    (PSI)

    Min.B.R.

    (in.)

    Weight

    (kg/m)

    2 51 2.64 67 150 375 350 1.65
    2.5 64 3.15 80 150 375 450 2.35
    3 76 3.66 93 150 375 520 2.70
    4 102 4.80 122 150 375 700 4.60
    5 127 5.87 149 150 375 950 4.60
    6 152 6.81 173 150 375 1160 7.00
    8 203 9.17 233 150 375 1400 15.00
    10 254 11.30 287 150 375 1700 20.00
    2 51 2.76 70 300 750 370 2.05
    2.5 64 3.27 83 300 750 470 2.75
    3 76 3.78 96 300 750 540 3.10
    4 102 4.92 125 300 750 720 5.00
    5 127 6.10 155 300 750 970 7.25
    6 152 7.05 179 300 750 1180 7.90
    8 203 9.41 239 300 750 1450 15.90
    10 254 11.54 293 300 750 1750 20.90
